Technical Data
| Operating voltage | 10,1V – 18,8V |
|---|---|
| Open-circuit voltage | 84,0 V |
| Mains frequency | 50 – 60Hz |
| Mains voltage | 230V |
| Mains fuse | 16A |
| Dimension / b | 180, 0mm |
| Dimension / l | 485, 0mm |
| Weight | 16,8 kg |
| Degree of protection | IP23 |

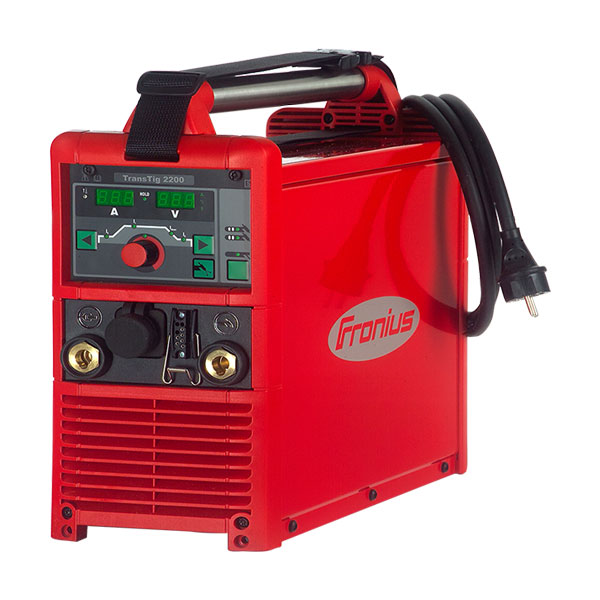

TransTig 2200
The TransTig is a completely digitised TIG DC power source. Alongside the different power categories from 80 to 500 A, the devices also vary in their mobility – from the mobile, portable device to the stationary, high-power complete system. However, they all have one thing in common – an extremely robust design for a long service life and an exceptionally self-explanatory operating concept.
The TransTig 2200 is both light and robust, self-explanatory in operation and delivers maximum power from a 230 V grid.
Share with your friends:
Features
- TAC
With TAC, one spot is all it takes for tacking, because the pulsed arc sets the two weld pools in motion, making them jump together in next to no time, to make one single weld-pool. The TAC function is also very useful when welding light-gauge sheets without filler metal. - HF IGNITION
The touchless and gentle high-frequency ignition is the easiest option for igniting the arc. - TOUCHDOWN IGNITION
Touchdown ignition can be used in particular for sensitive application areas. This allows electromagnetic interference, which can occur during HF ignition, to be avoided.
